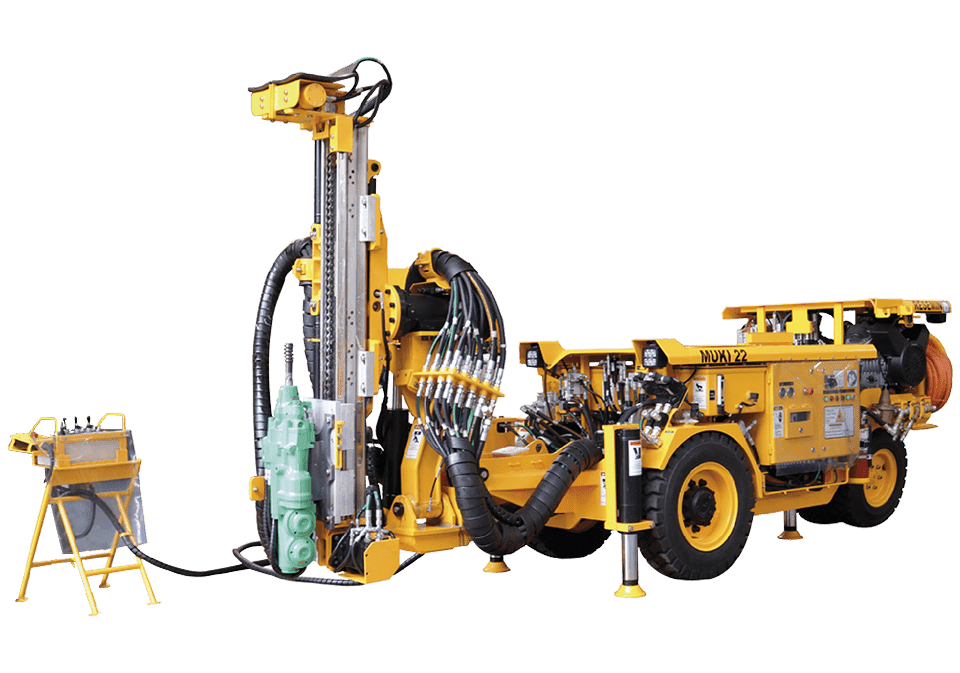

Remesin Muki 22
The equipment that changed underground mining
Electrohydraulic rig for long hole drilling, just for very small sections; specially designed to be disassembled and entered to drilling work sections throught shafts avoiding the construction of access ramps.
Equipped with Montabert HC 50 drifter (14 kW) and pendulum arm for feed traversing.
Available with two feed options for 3 ft. bars (total length 2.16 m) and for 4 ft. bars (total length 2.47 m); R32 and T38 drill columns.
Diameters from 51 to 64 mm, reamed up to 102 mm, maximum drilling length 15 m. Transversal coverage with automatic parallelism 1.40 m.
